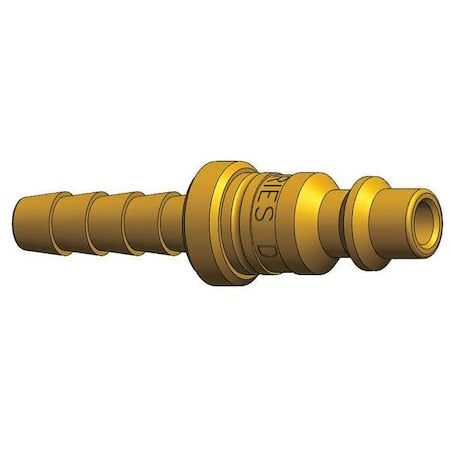

Dixon D3S3 - Barb to Industrial Plug,Barb,3/8,Steel

The DIXON - D3S3 is a quick connect hose coupling designed for tool-free, rapid connection and disconnection of hoses or equipment at the end of a hose or pipe. It features a male hose barb connection, compatible with 3/8 inch inner diameter hoses, and is configured to form a sealed connection for fluid tightness when properly installed. The coupling employs an industrial interchange type and a sleeve locking mechanism to lock the sleeve mechanism to hold the connection. Its use spans pneumatic, hydraulic, and general fluid transfer applications. The fitting is constructed of steel with a zinc-plated finish and includes nitrile seals to maintain fluid tightness over a temperature range of -40°F to 250°F.

Key Features:

• - Hose barb size and fitting size: 3/8 in, suitable for hoses with 3/8 inch inner diameter.
• - Coupling size: 3/8 in, matching standard industrial quick-connect systems.
• - Material: Steel body with a zinc-plated finish on external surfaces.
• - Seal material: Nitrile, is rated for operation within a temperature range of -40°F to 250°F when properly installed.
• - Maximum working pressure: 500 psi at 70°F (when used within manufacturer specifications).
• - Maximum flow rate: 1,274.25 liters per minute (at the specified test conditions)
• - Overall length: 2.25 inches, compact for integration with standard hose assemblies.
• - Coupling component type: Plug, male gender with sleeve locking type.
