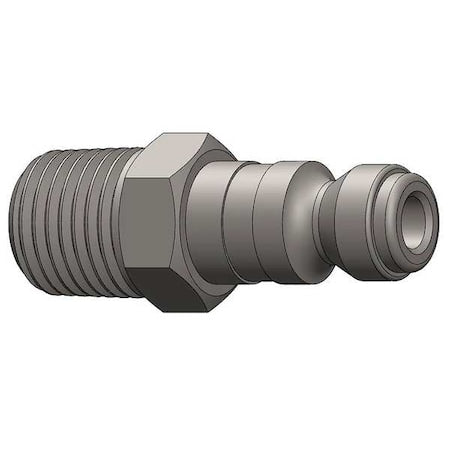

Dixon J2M3 - Male to Automotive Plug,(M)NPT,1/4,Steel

The DIXON - J2M3 is a quick connect hose coupling for on-end attachment to hoses or pipes; provides tool-free connection/disconnection when used with compatible couplers. It is constructed from steel with a zinc-plated finish and features a 1/4 inch NPT male connection. The coupling operates using a sleeve locking mechanism and is compatible with automotive style fittings, following the Tru-Flate-Automotive interchange standard. It is intended for use with hoses having a 3/8 inch inner diameter and matching hose fitting size. It is rated for fluid or air flow up to 736.23 liters per minute and maximum working pressure: 500 psi at 70°F. The nitrile seal O-ring is rated for operation within -40°F to 250°F.

Key Features:

• - Material: Steel body with zinc-plated finish for surface treatment.
• - Connection Type: 1/4 inch NPT male threaded end.
• - Locking Method: Sleeve locking connection for secure mating when connected to compatible couplers.
• - Coupling Type: Plug (male half) for insertion into a compatible coupler per Tru-Flate-Automotive interchange standard.
• - Hose Compatibility: Compatible with 3/8 inch inner diameter hoses with matching hose fitting size.
• - Interchange Standard: Tru-Flate-Automotive compatible fittings.
• - Maximum Flow Rate: 736.23 liters per minute.
• - Maximum Working Pressure: Maximum working pressure rating of 500 psi at 70°F.
• - Seal Material: Nitrile O-ring for sealing at rated pressure and temperature.
• - Operating Temperature Range: -40°F to 250°F.
• - Overall Length: 1.69 inches.
• - Maximum Outside Diameter: 0.813 inches.
