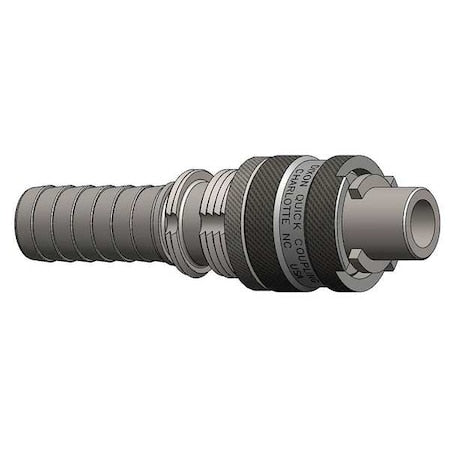

Dixon N4S4-LS - Barb to Bowes Nipple,Barb,1/2,Steel

The DIXON - N4S4-LS is a quick connect hose coupling that supports hose connection and disconnection using a sleeve locking mechanism without requiring tools (when used with compatible hoses/fittings). It features a male hose barb connection suitable for attaching to hoses with a 1/2 in inner diameter. The coupling component is a plug that uses a sleeve locking mechanism and is compatible with Bowes style interchange fittings. Constructed from zinc-plated steel with nitrile seals, is intended for use in fluid or air line systems as an inline hose coupling when connected to compatible hoses/fittings.

Key Features:

• - Hose fitting size and barb size: 1/2 in
• - Coupling size and body size: 1/2 in
• - Connection type: Hose Barb with male gender
• - Material: Steel with zinc-plated finish
• - Seal material: Nitrile
• - Maximum working pressure: 500 psi at 70°F
• - Maximum flow rate: 5,776.64 liters per minute
• - Operating temperature range: -40°F to 250°F
• - Overall length: 4.94 in
• - Maximum outside diameter: 1.44 in
• - Coupling locking type: Sleeve
• - Interchange type: Bowes
• - For use with Bowes style fittings
• - Does not include a valve component
