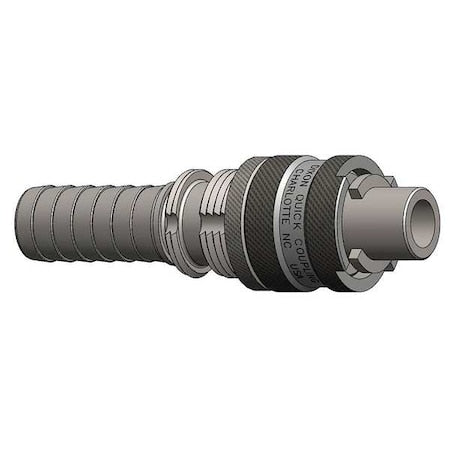

Dixon N4S6-B-LS - Quick Connect,Plug,1/2" Body,3/4" Barb
Dixon N4S6-B-LS - Quick Connect,Plug,1/2" Body,3/4" Barb
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The DIXON - N4S6-B-LS is a hose coupling with sleeve mechanism for connection/disconnection without tools (tool-free operation as specified). It features a Brass male plug with a hose barb connection (fixed specification), intended for use as an end coupling on a compatible hose or pipe (within specified size/interface). This coupling provides Nitrile seal and sleeve locking mechanism for sealing at specified pressure/temperature ratings (see max working pressure and temperature range), and is compatible with Bowes-style interchange systems (for compatible interface types only). Hose barb and coupling size compatibility: 3/4 in hose I.D. and 1/2 in coupling size. Zinc-plated finish for corrosion resistance (as specified), and the sealing is accomplished with nitrile material.
Key Features:
- - Material: Brass body construction.
- - Connection Type: Hose Barb with male fitting gender.
- - Application: On end of hose or pipe.
- - Coupling Locking Type: Sleeve mechanism.
- - Interchange Type: Bowes style.
- - Hose Fitting Size and Barb Size: 3/4 in hose I.D. and barb diameter.
- - Max. Working Pressure: Rated for operation at up to 300 psi at 70°F (max working pressure).
- - Max. Flow Rate: Rated maximum flow rate of 5,776.64 liters per minute (under specified conditions).
- - Temperature Range: -40°F to 250°F operating temperature.
- - Dimensions: Overall length of 4.94 in and maximum outside diameter of 1.44 in.
- - Seal Material: Nitrile.
- - Finish: Zinc plated for corrosion resistance (as specified).
