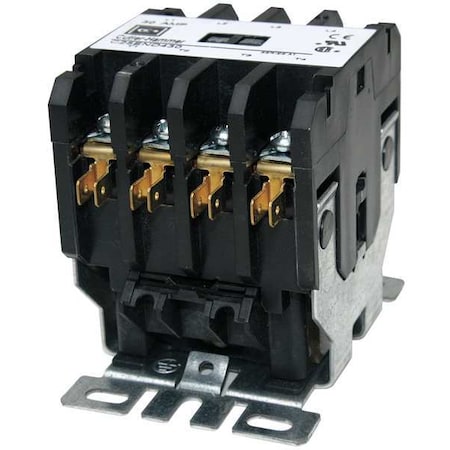

Eaton C25END425A - Definite Purpose Magnetic Contactor, 120 V AC, 4 P, Non-Reversing, 3 Phase, Quick Connect

The EATON - C25END425A is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Auxiliary Contact Module Capacity: 4 – Provides flexibility in managing multiple electrical loads or signals.
• Coil Voltage: 120V AC – Specifies the voltage range required for effective operation.
• Depth: 3.75 inches – Indicates how far it extends into the mounting surface or enclosure.
• Frequency: 50/60 Hz – Determines its compatibility with different power systems.
• Full Load Amps-Inductive & Resistive: Rated for a maximum of 25 A (inductive) and 30 A (resistive).
• Horsepower @ Single Phase & Three Phase - Rated for operation with motors ranging from a maximum horsepower of 2 hp at single phase power supply of 120 volts, up to a maximum horsepower of 15 hp at three-phase power supply of 575 volts
• Input Control Type: Operates via a simple two-wire system for both power supply and control
