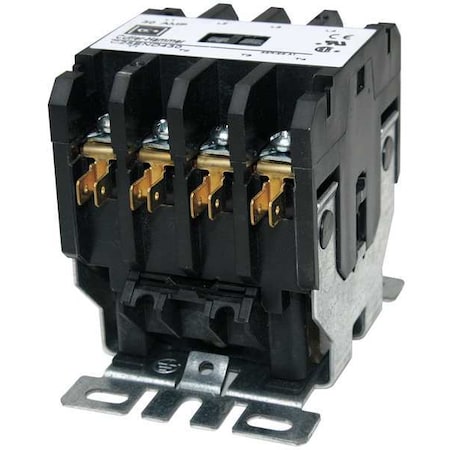

Eaton C25END430B - Definite Purpose Magnetic Contactor, 208 V-240 V AC, 4 P, Non-Reversing, 3 Phase, Quick Connect

The EATON - C25END430B is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Auxiliary Contact Module Capacity: 4 – Allows control of up to four additional secondary circuits for flexibility in managing multiple electrical loads or signals.
• Coil Voltage: 208V-240V AC – Specifies the voltage range required for effective operation.
• Depth: 3.75 in – Indicates how far it extends into the mounting surface or enclosure.
• Frequency: 50/60 Hz – Rated for operation within the specified frequency range.
• Full Load Amps-Inductive & Resistive: 30 A & 40 A respectively– Specifies the maximum continuous current handling capacity under normal operating conditions when controlling both types of loads
• Horsepower @ Single Phase -120V AC & @ Three Phase -480V AC 2 hp & 15 hp respectively– Indicates the rated motor power control capacity at respective voltages
• Input Control Type: 2-Wire system– Uses two wires for power supply and control
