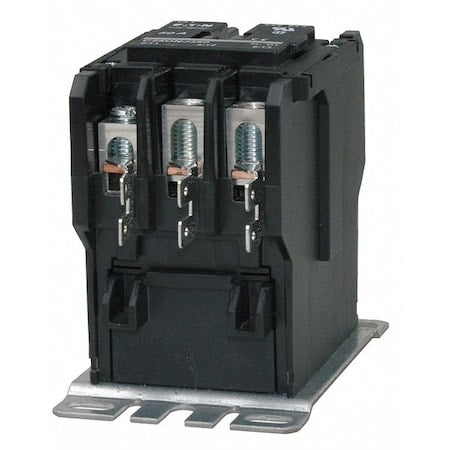

Eaton C25FNF360A - Definite Purpose Magnetic Contactor, 120 V AC, 3 P, Non-Reversing, 3 Phase, Quick Connect

The EATON - C25FNF360A is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Auxiliary Contact Module Capacity: 4 – Allows control of up to four additional secondary circuits for flexibility in managing multiple electrical loads or signals.
• Coil Voltage: 120V AC – Specifies the voltage range required for effective engagement or disengagement of its electrical circuit.
• Depth: 3.75 inches – Indicates how far it extends into the mounting surface or enclosure.
• Frequency: Rated for operation within the specified frequency range of 50/60 Hz, which may affect compatibility with different power systems.
• Full Load Amps-Inductive & Resistive: 60 A & 75 A respectively– Specifies the rated continuous current handling capacity for inductive (like motors) and resistive (heating) loads. Exceeding these ratings may result in overheating or damage
• Horsepower @ Single Phase - 120V AC & @ Three Phase -480V AC :5 hp & 40 hp respectively– Specifies the rated motor power control for single-phase and three-phase alternating currents. Operating beyond these specifications could lead to performance issues or damage
