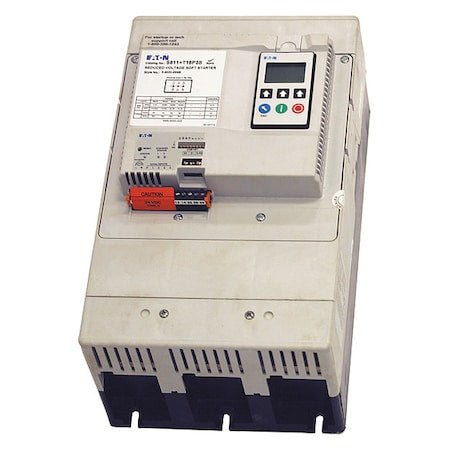

Eaton S811+T24N3S - Soft Starter,240 A,3 Phase

This item is a three-phase soft start device used to control the starting and stopping of electric motors. It operates on AC input power up to 600V and uses reduced-voltage starting methods with configurable ramp and stop times. The unit includes an internal bypass and digital keypad interface, along with built-in communication capability for integration with control and monitoring systems.

Key Features:

• Item Type: Soft start with digital keypad control.
• Motor Power Ratings: Supports motor operation up to 150 hp at 480V AC and up to 200 hp at 575V AC, with additional ratings for lower voltages.
• Electrical Configuration: Three-phase operation with 600V AC input and 240 A output current.
• Starting and Stopping Control: Adjustable ramp time and stop time from 0 to 180 seconds, with starting torque adjustable from 0% to 83%.
• Bypass Configuration: Includes internal bypass contactors.
• Control and I/O: 24V DC control voltage with analog input, relay outputs, and digital inputs/outputs.
• Communication: Built-in Modbus communication with additional Ethernet IP, Profibus, and DeviceNet options available.
• Enclosure: Open-style NEMA 0 enclosure with IP20 rating.
