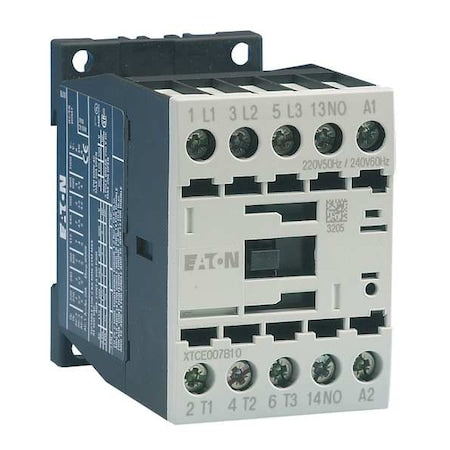

Eaton XTCE007B10A - IEC Magnetic Contactor, 1 NO, 120 V AC, 3 P, Non-Reversing, Screw

The Eaton XT IEC contactor is an IEC magnetic contactor (Frame B) with 3 poles; it is rated for operation within specified parameters.

It uses a 120 V AC coil; the device has an amperage rating of up to 7 A (inductive), based on standard testing conditions, with one normally open auxiliary contact (1NO).

The unit belongs to the XT series and complies with relevant IEC standards when installed according to manufacturer instructions.

Key features:

• - Action: Non-Reversing
• - Poles: 3
• - Coil Voltage: 120 V AC
• - Amperage Rating (Full Load): 7 A (inductive); 22 A (resistive)
• - Auxiliary Contacts: 1 NO
• - Auxiliary Contact Form: 1 NO
• - Terminals: Screw
• - Mounting: DIN Rail, Panel
• - Frame Size: B; Series: XT
• - Enclosure: No Enclosure; IP20
• - Maximum Voltage: 690 V AC
• - Frequency: 50/60 Hz
• - Mechanical Durability: 10,000,000 cycles
• - Electrical Durability: 1,000 (AC-3 at 400V); 300 (AC-4 at 400V); 800 (AC-1 at 400V) — values based on standardized testing conditions and do not imply guaranteed performance over specific usage durations.
• - Embedded Surge Suppressor: Yes
• - Operating Temperatures: -13 °F to 122 °F
• - Dimensions: Width 1.77 in; Depth 2.95 in; Height 2.67 in
• - Certifications/ Standards: These certifications indicate compliance with certain standards but do not imply certification of safety or performance guarantees.
