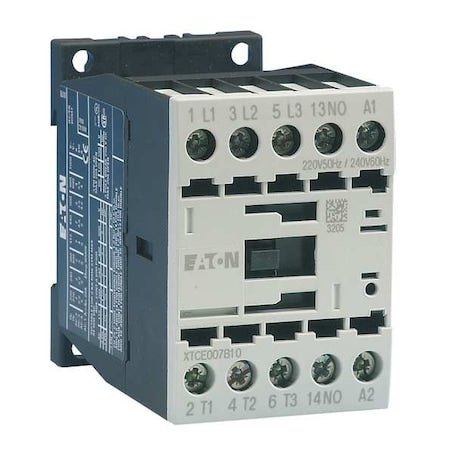

• Eaton XTCE007B10B - IEC Magnetic Contactor, 1 NO, 240 V AC, 3 P, Non-Reversing, Screw
1 1

Eaton XTCE007B10B - IEC Magnetic Contactor, 1 NO, 240 V AC, 3 P, Non-Reversing, Screw

Eaton XTCE007B10B - IEC Magnetic Contactor, 1 NO, 240 V AC, 3 P, Non-Reversing, Screw

Brand: Eaton SKU: XTCE007B10B
$115.53 USD
$115.53 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Eaton XT IEC contactor is rated for operation within specified voltage ranges, with 3 poles, a 240 V AC coil, and an amperage rating of up to 7 A. It includes one normally open auxiliary contact.

Specifications

  • - Action: Non-Reversing
  • - Poles: 3
  • - Coil Voltage: 240 V AC
  • - Amperage Rating: 7 A
  • - Contact Configuration: 1 NO
  • - Auxiliary Contacts: 1 NO
  • - Frame Size / Series: Frame B / XT
  • - Electrical Connection: Screw Terminals
  • - Mounting Style: DIN Rail, Panel
  • - Enclosure: This product is provided without an enclosure; appropriate installation should be in accordance with applicable standards.
  • - IP Rating: This device has an IP20 rating suitable for indoor use in controlled environments.
  • - Maximum Voltage Rating: Rated for operation within the specified voltage range up to maximum of approximately 690 V AC.
  • - Embedded Surge Suppressor: Yes
  • - Mechanical Operating Durability: 10,000,000 cycles
  • - Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS
  • - Frequency: 50/60 Hz
  • - Full Load Amps: Inductive 7 A; Resistive 22 A
  • - Reversing Capability: Non-Reversing
  • - Includes Auxiliary Contacts: Yes

    Notes

  • - The presence of an embedded surge suppressor does not guarantee surge protection effectiveness; verify proper application.
  • - The durability figure indicates mechanical operating cycles and does not imply suitability or safety over time.
  • - Certifications/Standards listed are recognized standards but do not constitute certification guarantees beyond compliance verification.
  • - Frequency and performance may vary based on system conditions.
  • - Full Load Amps indicate rated current under standard test conditions; actual currents depend on application specifics.
    • 🏢
