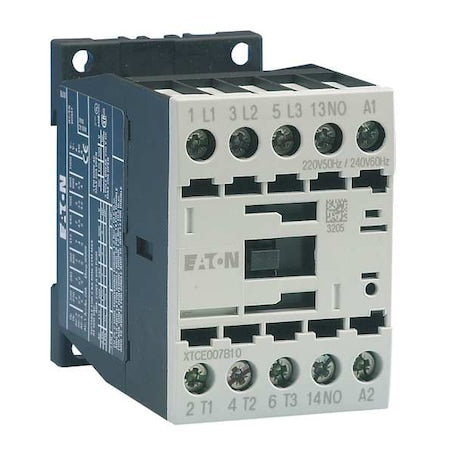

Eaton XTCE009B10A - IEC Magnetic Contactor, 1 NO, 120 V AC, 3 P, Non-Reversing, Screw

The Eaton XT IEC contactor is an IEC magnetic contactor rated for switching power circuits within specified parameters. It is rated for operation with coils of 120 V AC and loads up to 9 A in accordance with specifications, includes auxiliary contacts as specified in the product features. The unit uses screw terminals and has a frame size B (Series XT) and is rated for operation at voltages up to 690 V AC within the specified conditions.

Key features:

• - Action: Non-Reversing
• - Poles: 3
• - Coil Voltage: 120 V AC
• - Full Load Amps (Inductive): 9 A
• - Main Contact Configuration: 1 NO; Auxiliary Contact Configuration: 1 NO
• - Includes Auxiliary Contacts: Yes
• - Electrical Connection: Screw Terminals
• - Frame Size / Series: Frame B / XT
• - Mounting Style: DIN Rail, Panel
• - Enclosure: No Enclosure (IP20)
• - Dimensions: 1.77 in W × 2.68 in H × 2.95 in D
• - Frequency: 50/60 Hz
• - Maximum Voltage Rating: 690V AC
• - Mechanical Operating Durability: 10,000,000 cycles
• - Operating Temperature: -13°F to 122°F
• - Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947
• - Standards/Compliances: CE Marked; RoHS
• - Product Name: Eaton XT IEC contactor
