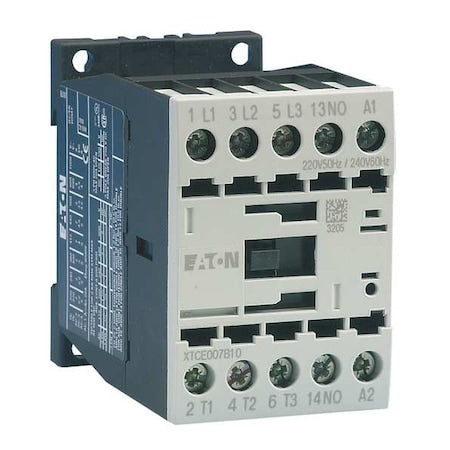

• Eaton XTCE012B01TD - IEC Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw
1 1

Eaton XTCE012B01TD - IEC Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw

Eaton XTCE012B01TD - IEC Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw

Brand: Eaton SKU: XTCE012B01TD
$151.50 USD
$151.50 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Eaton XT IEC contactor is an IEC magnetic contactor configured as a 3-pole, non-reversing device with a 24 V DC coil. It features a 12 A amperage rating and 1NC auxiliary contact. The contactor features screw terminal connections; complies with applicable standards including UL Listed, CSA Certified, CE Marked; EN/IEC standards such as EN 60947 and IEC 60947; RoHS compliance; frame size B. Suitable mounting options include DIN Rail or Panel mount; enclosures available vary based on configuration. Its maximum rated operational voltage is up to 690 V AC. The device's dimensions are approximately 2.95 inches deep by 1.77 inches high by about 3 inches wide. Mechanical durability is approximately 10 million cycles; electrical durability is approximately 1 million cycles. Certifications include UL Listed, CSA Certified, CE Marked, EN 60947, IEC 60947, and RoHS.

  • - Item: IEC Magnetic Contactor
  • - Series: XT
  • - Contactor Style: IEC
  • - Reversing: No
  • - Action: Non-Reversing
  • - Poles: 3
  • - Coil Voltage: 24 V DC
  • - Amperage Rating: 12 A
  • - Aux Contacts: 1NC
  • - Embedded Surge Suppressor: Yes
  • - Electrical Connection: Screw Terminals
  • - Frame Size: B
  • - Mounting Style: DIN Rail, Panel
  • - Enclosure: No Enclosure
  • - IP Rating: IP20
  • - Maximum Voltage Rating: Up to 690 V AC
  • - Certifications/Standards: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS
  • - Mechanical Durability: Approximately 10,000,000 cycles
  • - Electrical Durability: Approximately 1,000,000 cycles
  • - Maximum Operating Temperature: 122 Degrees F
  • - Minimum Operating Temperature: -13 Degrees F
  • - Width/Height/Depth: 3 in x 1.77 in x 2.95 in
  • - Includes Auxiliary Contacts: Yes
  • - Product Name: Eaton XT IEC contactor
    • 🏢
