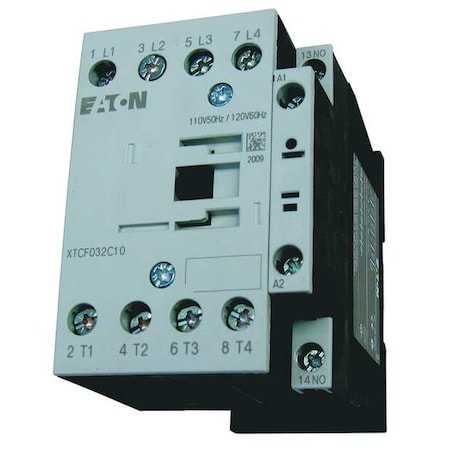

• Eaton XTCF032C10B - IEC Magnetic Contactor, 1 NO, 240 V AC, 4 P, Non-Reversing, Screw
1 1

Eaton XTCF032C10B - IEC Magnetic Contactor, 1 NO, 240 V AC, 4 P, Non-Reversing, Screw

Eaton XTCF032C10B - IEC Magnetic Contactor, 1 NO, 240 V AC, 4 P, Non-Reversing, Screw

Brand: Eaton SKU: XTCF032C10B
$215.81 USD
$215.81 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a four-pole, non-reversing, coil-operated switching device rated for operation within specified parameters for controlling power circuits in control panels. It uses a 240 V AC coil with screw terminals and supports DIN Rail or Panel mounting. This model includes one normally open auxiliary contact and an embedded surge suppressor, does not include an enclosure, and has an IP20 ingress protection rating (note: this indicates limited dust protection). It belongs to the XT series with Frame C (Frame Size C) and rated for operation at 50/60 Hz three-phase supply.

- Action: Non-Reversing

  • - Poles: 4
  • - Coil Voltage: 240 V AC
  • - Terminal Connection Type: Screw
  • - Auxiliary Contacts: 1 NO (1 NO)
  • - Includes Auxiliary Contacts: Yes
  • - Embedded Surge Suppressor: Yes
  • - Enclosure: Does not include an enclosure
  • - IP Rating: has an IP20 ingress protection rating (note: this indicates limited dust protection)
  • - Frame Size / Series: Frame C / XT
  • - Frequency: 50/60 Hz
  • - Phase: Three
  • - Full Load Amps (Inductive / Resistive): rated for full load currents of up to 18 A (inductive) and 45 A (resistive) under specified conditions
  • - HP @ 1 Phase - 240V: provides horsepower ratings based on standard testing conditions; actual performance may vary depending on application and installation
  • - HP @ 3 Phase - 240V: provides horsepower ratings based on standard testing conditions; actual performance may vary depending on application and installation
  • - HP @ 3 Phase - 480V: provides horsepower ratings based on standard testing conditions; actual performance may vary depending on application and installation
  • - HP @ 3 Phase - 600V: provides horsepower ratings based on standard testing conditions; actual performance may vary depending on application and installation
  • - Maximum Voltage Rating: 690 V AC
  • - Maximum Operating Temperature: 122°F
  • - Minimum Operating Temperature: -13°F
  • - Overall Dimensions (HxWxD): 3.35 in × 2.28 in × 5.43 in
    • 🏢
