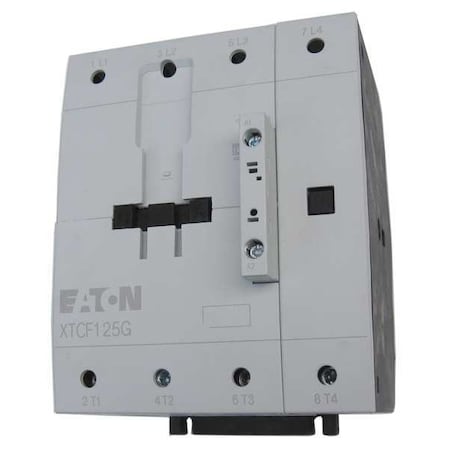

Eaton XTCF200G00T - IEC Magnetic Contactor, No Auxiliary Contacts, 24 V AC, 4 P, Non-Reversing, Screw

Eaton XTCF200G00T - IEC Magnetic Contactor, No Auxiliary Contacts, 24 V AC, 4 P, Non-Reversing, Screw

Brand: Eaton SKU: XTCF200G00T
$1,091.08 USD
$1,091.08 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Eaton IEC Magnetic Contactor is an IEC-style, electrically operated switching device used to control power circuits. This 4-pole, non-reversing model uses a 24 V AC coil and has no auxiliary contacts. It features screw-terminal wiring and mounting on DIN Rail or Panel, with Frame G size in the XT series. The unit is rated for operation within the specified voltage range of 690 V AC and 50/60 Hz, equipped with a surge suppression component meeting industry standards, and is provided without an enclosure.

- Action: Non-Reversing

  • - Auxiliary Contact Form: No Auxiliary Contacts
  • - Coil Voltage: 24V AC
  • - Coil Volts: 24 V AC
  • - Contactor Style: IEC
  • - Depth: 5.59 in
  • - Embedded Surge Suppressor: Equipped with a surge suppression component meeting industry standards
  • - Enclosure NEMA Rating: No Enclosure
  • - Frame / Series / Class / Code: Frame G, XT Series
  • - Frame Size: G
  • - Frequency: 50/60 Hz
  • - Full Load Amps-Inductive: 115 A
  • - Full Load Amps-Resistive: 200 A
  • - Full Load Current - Inductive: 115 A
  • - Full Load Current - Resistive: 200 A
  • - HP @ 1 Phase - 230V: 40 hp
  • - HP @ 1 Phase - 240V: 40 hp
  • - HP @ 3 Phase - 208V: 40 hp
  • - HP @ 3 Phase - 240V: 50 hp
  • - HP @ 3 Phase - 480V: 100 hp
  • - HP @ 3 Phase - 575V: 125 hp
  • - Height: 6.69 in
  • - Mechanical Operating Durability: Mechanical durability rating based on testing standards; actual lifespan may vary depending on usage conditions
  • - Maximum Operating Temperature: as specified; actual performance may vary under different conditions
  • - Maximum Voltage Rating: According to specifications; does not imply guaranteed performance beyond this value
  • - Mounting Style: DIN Rail, Panel
  • - Mounting Hole Diameter: 0.24 in
  • - Mounting Hole Distance - Height: 6.14 in
  • - Mounting Hole Distance - Width: 2.76 in
  • - Minimum Operating Temperature: -13 Degrees F
  • - NEMA Enclosure Rating: No Enclosure
  • - IP Rating: IP20
  • - Number of Auxillary Contacts: 0
  • - Phase: Three
  • - Response Time: 28 to 33 msec (AC Closing), 30 msec (DC Opening), 35 msec (DC Closing), 35 to 41 msec (AC Opening)
  • - Reversing: No
  • - Reversing Capability: Non-Reversing
  • - Standards: CE, CSA, EN/IEC 60947, RoHS, UL Listed
  • - Terminal Connection Type: Screw
  • - Width: 5.24 in
    • 🏢
