• Eaton XTCR012B21TD - IEC Magnetic Contactor, 1 NC/2 NO, 24 V DC, 3 P, Reversing, Screw
1 1

Eaton XTCR012B21TD - IEC Magnetic Contactor, 1 NC/2 NO, 24 V DC, 3 P, Reversing, Screw

Eaton XTCR012B21TD - IEC Magnetic Contactor, 1 NC/2 NO, 24 V DC, 3 P, Reversing, Screw

Brand: Eaton SKU: XTCR012B21TD
$493.76 USD
$493.76 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

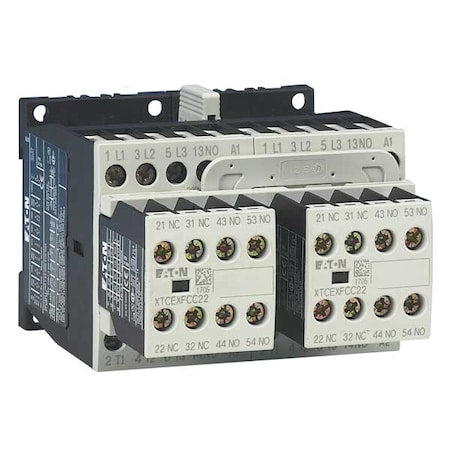

The Eaton XT IEC contactor is an IEC magnetic contactor with reversing action and a 24 V DC coil. It is a 3-pole, full-voltage reversing device rated for operation within the specified standards. The unit uses screw terminals, mounts on DIN rails or panels, and is described without an enclosure. It carries multiple certifications including UL Listed, CSA Certified, EN 60947, and IEC 60947.

Key features

  • - Action: Reversing
  • - Poles: 3
  • - Contact configuration: 2 NO, 2 NO
  • - Auxiliary contacts: 4 total; configuration 2NO/1NC; form 1NC/2NO
  • - Coil voltage: 24 V DC
  • - Amperage ratings: Full Load Amps – Inductive 12 A; Full Load Amps – Resistive 22 A
  • - Mounting style: DIN Rail, Panel
  • - Frame/Series/Code: Frame B; Series XT; Type: Full voltage reversing contactor
  • - Enclosure: No Enclosure; IP20
  • - Electrical connection: Screw terminals
  • - Certifications/Compliances: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS
  • - Dimensions: Width 5.75 in; Height 5 in; Depth 5.25 in
  • - Operating temperature: Max 122°F; Min -13°F
  • - Product name: Eaton XT IEC contactor
    • 🏢
