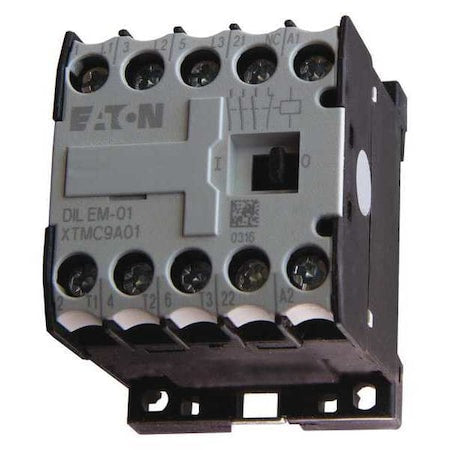

Eaton XTMC9A01TD - IEC Miniature Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw

Eaton XTMC9A01TD - IEC Miniature Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw

Brand: Eaton SKU: XTMC9A01TD
$114.44 USD
$114.44 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Eaton XT IEC mini contactor is an IEC miniature magnetic contactor with 3 poles and a 24 V DC coil. The contactor is rated for non-reversing operation within its specified design parameters. The device features screw terminals and supports DIN Rail or Panel mounting options; it does not include an enclosure.

- Action: Rated for non-reversing operation within specified conditions.

  • - Coil Voltage: Rated coil voltage: 24 V DC (within manufacturer specifications).
  • - Poles / Contact Configuration: Configured with 3 poles and one normally closed auxiliary contact (1NC).
  • - Auxiliary Contacts: Contains one auxiliary contact of form 1NC, as specified by the manufacturer.
  • - Amperage Rating / Full Load: Rated for full load currents up to these values under standard testing conditions.
  • - Maximum Voltage Rating: Suitable for applications up to a maximum voltage of approximately this value, per ratings listed in specifications.
  • - Frequency: Designed to operate at standard power frequencies of either 50 Hz or 60 Hz within rated conditions.
  • - IP Rating: Has an ingress protection rating of IP20, indicating limited dust protection but no water resistance.
  • - Enclosure: Does not include an enclosure; suitable for installation in appropriate enclosures or panels according to standards.
  • - Mounting Style / Position: Supports DIN Rail or panel mounting configurations in vertical orientation as per installation guidelines.
  • - Electrical Connection: Screw
  • - Embedded Surge Suppressor: Yes
  • - Frame / Series: XT; Frame Size: A
  • - Certifications: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS
  • - Dimensions: Width 1.44 in; Height 2.28 in; Depth 1.79 in
  • - Operating Temperature: -13°F to 122°F
  • - Mechanical Durability: 20,000,000 cycles
  • - Item / Product Name: IEC Miniature Magnetic Contactor; Eaton XT IEC mini contactor
    • 🏢
