Ecocirc+ 20-18 Variable Speed ECM Smart Circulator Pump, 115V/1PH, 70W
Ecocirc+ 20-18 Variable Speed ECM Smart Circulator Pump, 115V/1PH, 70W
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 60B0B1003 (Cast Iron Body) |
| Physical Unit Weight | 6.20 lbs |
| Motor Power Consumption | 70 Watts (Max Amperage: 0.60A) |
| Electrical Ratings | 115V / 1 Phase / 50-60 Hz |
| Maximum Operational Head / Flow | 18 Ft. Max Head / 20 GPM Max Flow |
| Maximum Working Pressure | 145 PSI (10 bar) |
| Maximum Fluid Temperature | 230°F (110°C) |
| Wireless Integration Features | Bluetooth Communication & Plus Features Control |
Couldn't load pickup availability

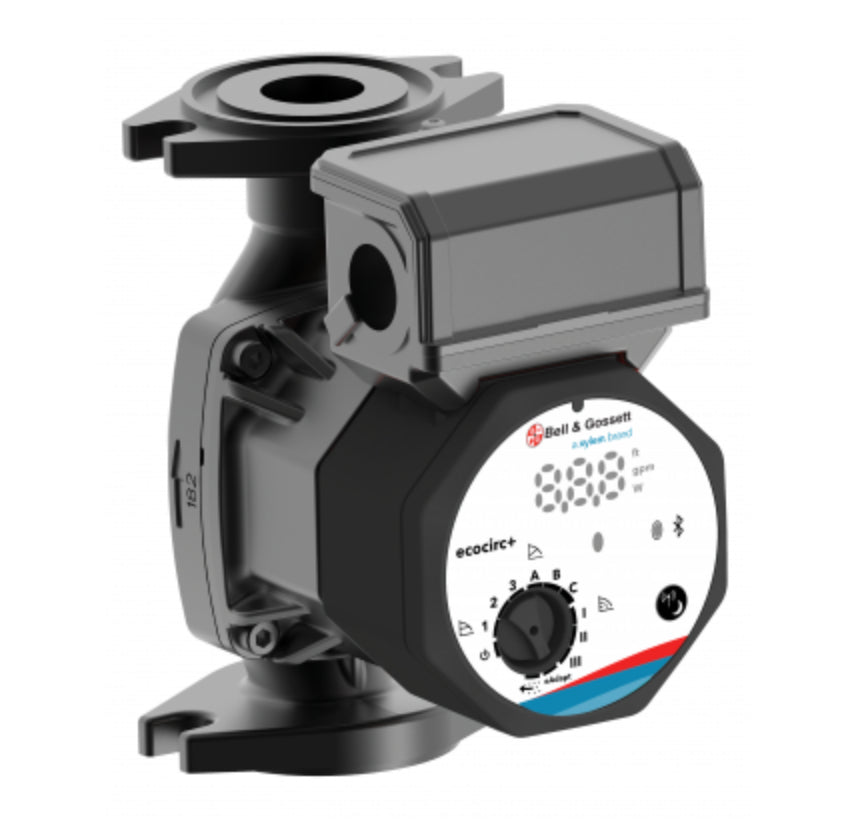

Bell & Gossett ecocirc+ 20-18 High-Efficiency Variable Speed ECM Smart Circulator
Taking system automation and residential or light commercial hydronic efficiency further than ever before, the Bell & Gossett ecocirc+ 20-18 is a premier, variable-speed smart wet-rotor circulator pump. Driven by an advanced 70W electronically commutated permanent magnet motor (ECM), this next-generation circulator provides boundless energy savings by automatically adjusting motor speeds to match changing system heating or cooling loads, dropping power consumption by up to 80% compared to traditional multi-speed pumps.
What truly sets the ecocirc+ (Plus) model apart is its built-in wireless connectivity. It pairs directly with your smartphone or tablet via Bluetooth to allow for full setup control, live troubleshooting, and comprehensive performance insights. Featuring an intuitive display screen right on the control head, users can toggle seamlessly between proportional pressure, constant pressure, constant speed, and automated night setback operational settings.
Key System Performance Baselines:
- Wireless Smart Connectivity: Onboard Bluetooth capability links to mobile software tools to track operational profiles, configure settings, and view diagnostic alerts.
- Precision Motor Controls: Highly efficient 70-watt permanent magnet ECM motor operates at a crisp 115V single-phase baseline to maximize torque while lowering amp draw.
- Versatile Control Frameworks: Pre-programmed with Proportional Pressure, Constant Pressure, and Constant Speed presets to integrate effortlessly into standard radiant, baseboard, or cooling loops.
- Integrated Protection Vectors: Built-in automatic air purging software cycle clears trapped lines quickly, accompanied by automatic dry-run thermal protection to shield internal ceramic bearings.
⚠️ Application Profile: This cast iron body model is specifically engineered for closed-loop hydronic heating infrastructure, radiant loops, snow-melt setups, and HVAC chilled water loops. It is not rated for open-loop domestic potable water lines.
