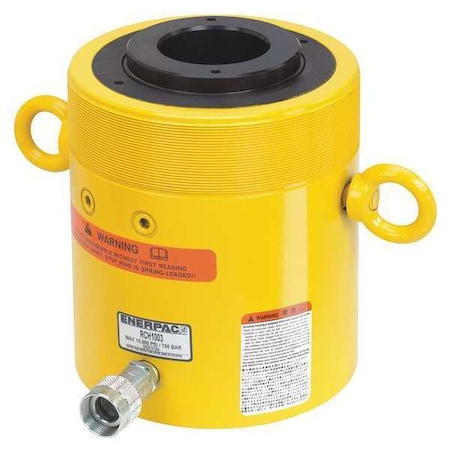

Enerpac RCH1003 - General Purpose Hydraulic Ram, RCH Series, Hollow Plunger, Single Acting, 100 ton, 3 in Stroke

The ENERPAC RCH1003 is a single-acting, hollow-plunger hydraulic cylinder (general purpose hydraulic ram) in the RCH series. It provides a 3.00 in nominal stroke and a 100-ton nominal push capacity at a maximum operating pressure of 10,000 psi; the body is steel with a painted finish.

Key Features:

• - Cylinder type: Hollow plunger, single acting
• - Nominal push capacity: 100 ton
• - Maximum pressure: 10,000 psi
• - Effective push area: 20.63 sq. in.
• - Nominal stroke length: 3 in (stroke length: 3 in)
• - Oil capacity (push): 61.88 cu. in.
• - Retracted height: 10 in; Extended height: 13 in
• - Plunger diameter: 5 in; center hole diameter: 3.11 in; outside diameter: 8.38 in
• - Plunger thread size: 4"-16; collar thread size: 8-3/8"-12
• - Base bolt circle diameter: 7 in; base mounting thread size: 5/8"-11
• - Body material: Steel; finish: paint
• - Handle: Yes
• - Includes: Coupler, Dust cap
