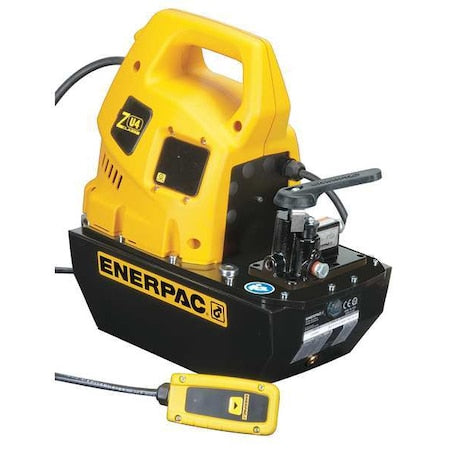

Enerpac ZU4308JB - Hydraulic Pump, Electric, 10,000 psi, 115 V AC, Single-Acting, 2 gal Reservoir

The ENERPAC ZU4308JB is an electric hydraulic pump with a 1.7 hp universal motor and a 115V AC single-phase nameplate. It delivers a maximum operating pressure of 10,000 psi and is rated for intermittent duty. The unit includes a 2 gal (462 cu in) steel reservoir, operates on 50/60 Hz, draws 22 A, and produces sound levels between 85 and 90 dBA. Dimensions are 25 in length, 12.5 in width, and 16.7 in height. Listed applications include construction, post-tensioning, and foundation repair.

Key Features:

• - Maximum operating pressure: 10,000 psi
• - Motor: 1.7 hp universal motor; Nameplate Voltage: 115V AC; Phase: Single; Current/Amps: 22 A; Frequency: 50 Hz, 60 Hz
• - Duty cycle: Intermittent
• - Oil displacement / flow (cu in/min): 700 @ 100 psi; 675 @ 0–200 psi; 535 @ 700 psi; 500 @ 1,000 psi; 76 @ 5,000 psi; 60 @ 10,000 psi; overall oil displacement range 60 to 675 cu in/min; Flow rate - maximum: 60 cu in/min
• - Reservoir: 2 gal (462 cu in), steel
• - Control valve: Manual 3-way, 3-position, tandem center; functions: advance, hold, retract; control valve pressure relief min 2,000 psi, max 10,000 psi; relief valve range 1,000 to 10,000 psi
• - Control pendant: 10 ft (Control Pendant Voltage: Manual)
• - Cylinder compatibility: Single acting
• - Media intake connection: 1/2 in NPTF
• - Sound level: 85 to 90 dBA
• - Overall dimensions: 25 in L x 12.5 in W x 16.7 in H
