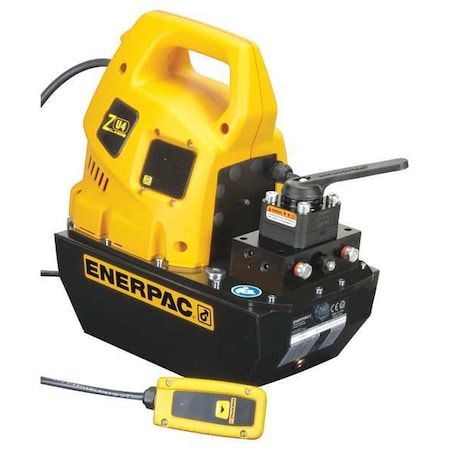

Enerpac ZU4704PB - Electric Hydraulic Pump, 115 V AC, 10,000 psi, 1 gal Reservoir, Manual 3-Way Valve

The ENERPAC ZU4704PB is an electric hydraulic pump with a 1.7 hp universal motor and a 115V AC single‑phase nameplate. It delivers a maximum operating pressure of 10,000 psi, operates on 50/60 Hz and draws 22 A, and is specified for light production and lifting applications with an intermittent duty cycle. The unit includes a 1 gal (231 cu in) steel reservoir, a 10 ft manual control pendant, and overall dimensions of 25 in L × 12.5 in W × 16.7 in H. Sound level is listed at 85–90 dBA.

Key Features:

• - Type: Electric hydraulic pump; motor type: universal; horsepower: 1.7 hp (1 7/10 hp)
• - Maximum/operating pressure: 10,000 psi; operating pressure - maximum: 10,000 psi
• - Flow / displacement: 60 cu in/min @ 10,000 psi (maximum flow 60 cu in/min); 700 cu in/min @ 100 psi; 675 cu in/min @ 200 psi; 535 cu in/min @ 700 psi; 500 cu in/min @ 1000 psi; 76 cu in/min @ 5000 psi
• - Electrical: 115V AC nameplate voltage, single phase, 50/60 Hz, 22 A current
• - Control: 10 ft manual pendant; manual 3‑way/2‑position control valve with advance/retract function
• - Relief/adjustment ranges: control valve pressure relief 2,000–10,000 psi; relief valve range 1,000–10,000 psi
• - Reservoir: 1 gal (231 cu in) steel reservoir
• - Connections and compatibility: media intake 1/2 in NPTF; cylinder compatibility single acting
• - Physical and operational: overall dimensions 25 in × 12.5 in × 16.7 in (L×W×H); duty cycle intermittent; sound level 85–90 dBA
