Exair 9023 - Swivel Connector,3/4in.,NPT,SS

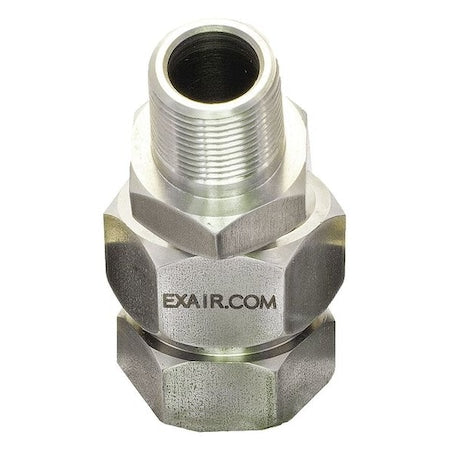

The EXAIR - 9023 is a swivel connector designed as a quick-connect fitting for hoses or attached tools, allowing 360-degree rotation through a sealed ball-joint pivot point. This provides 360-degree rotation to help reduce hose twisting and kinking while maintaining a sealed connection for air or fluid transmission. It has a 3/4 in NPT male inlet and a 3/4 in NPT female outlet and is intended for use in hose/nozzle fluid systems that match these connection types. The device operates within a temperature range of 32 to 800 degrees Fahrenheit and supports a maximum working pressure of 250 psi.

Key Features:

• - Material: Stainless Steel, specifically Type 303 and Type 316 grades.
• - Finish: Chrome-Plated surface treatment.
• - Connection Type: 3/4 in NPT male inlet x 3/4 in NPT female outlet.
• - Swivel Angle: 360 degrees enabled by a ball-joint swivel type.
• - Operating Temperature Range: 32°F to 800°F.
• - Maximum Working Pressure: 250 psi at 70°F.
• - Number of Pivot Points: 1.
• - Does not include pre-applied thread sealant.
