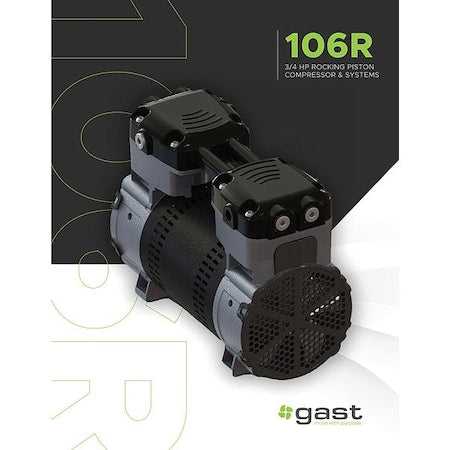

Gast 106R650-101-N600X - Electric Air Compressor,3/4 hp Output
Gast 106R650-101-N600X - Electric Air Compressor,3/4 hp Output
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 106R650-101-N600X is an oil-free electric air compressor. It operates on 120V AC, 230V AC power at 50 Hz, 60 Hz at a rated 3/4 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.2 cfm at maximum pressure, and a maximum continuous pressure of 145 psi. It has a maximum speed of 1,725 RPM, a full-load current of 3.8 A, 7.4 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes a capacitor-start motor. Enclosure type is open drip-proof. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 11.85 x 5.68 x 8.91 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 20,000 hr.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
