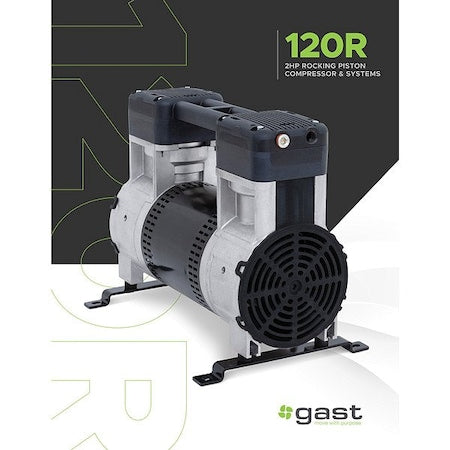

Gast 120R689-P101-N800NX - Gast 120 R Rocking Piston Compressor
Gast 120R689-P101-N800NX - Gast 120 R Rocking Piston Compressor
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 120R689-P101-N800NX is an oil-free, twin-cylinder piston air compressor with a rocking-piston design. It operates on 200-240V AC single-phase power at 60 Hz at a rated 2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 12 scfm, a maximum continuous pressure of 145 psi, and a maximum vacuum of 28 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 9.5 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a steel cylinder, and a capacitor-start motor. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 15.4 x 10.5 x 12.6 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 20,000 hr.
