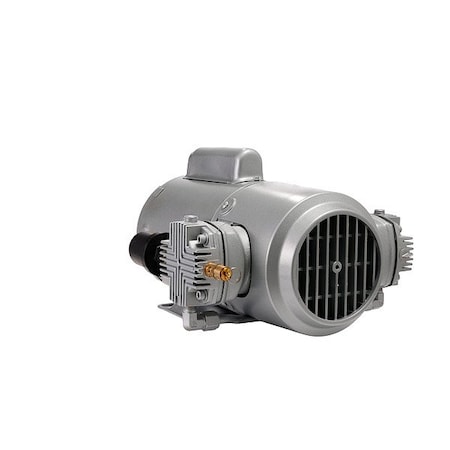

Gast 5HCD-10-M553 - Piston Air Compressor,Size 1/4",1725 RPM
Gast 5HCD-10-M553 - Piston Air Compressor,Size 1/4",1725 RPM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 5HCD-10-M553 is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 200 to 230/460V AC, 220 to 240V AC/380 to 415V AC three-phase power at 50 Hz, 60 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 3.9 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 3.55 A, and a measured sound level of 73 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a 3-phase motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 15.799 x 12.047 x 6.653 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
