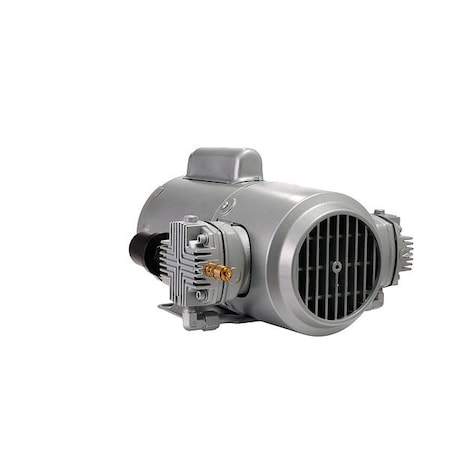

Gast 5LCA-10-M550NGX - Piston Air Compressor,Size 1/4",1725 RPM
Gast 5LCA-10-M550NGX - Piston Air Compressor,Size 1/4",1725 RPM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 5LCA-10-M550NGX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/208 to 230V AC single-phase power at 60 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 5.85 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM, and a measured sound level of 75 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 14.645 x 12.283 x 8.267 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
