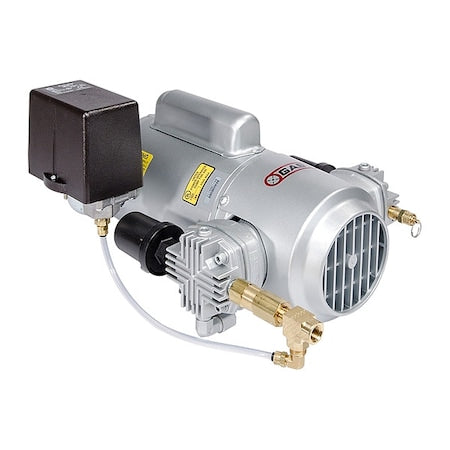

Gast 5LCA-246S-M550GX - Piston Air Compressor, 3/4 HP, 115/230 V, 1 Ph
Gast 5LCA-246S-M550GX - Piston Air Compressor, 3/4 HP, 115/230 V, 1 Ph
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 5LCA-246S-M550GX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 3/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 5.85 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,750 RPM, a full-load current of 16/8 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.187 x 12.25 x 8.333 in (L x W x H).
