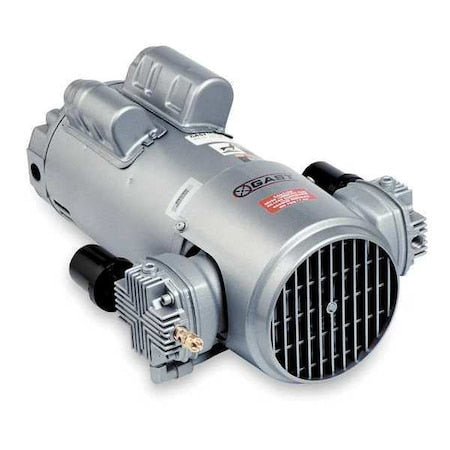

Gast 6HCA-12-M616NEX - Piston Air Compressor, 1 HP, 115/230 V, 1 Ph
Gast 6HCA-12-M616NEX - Piston Air Compressor, 1 HP, 115/230 V, 1 Ph
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 6HCA-12-M616NEX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 3.2 CFM at 100 psi up to 5.35 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 14.8/7.4 A, and a measured sound level of 63 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a shaded-pole motor, and corrosion resistant sandwich valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.625 x 12.25 x 8.937 in (L x W x H). Duty cycle: continuous. The manufacturer lists typical applications including aeration, beverage dispensing, business machines, packaging, and photographic processing.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
