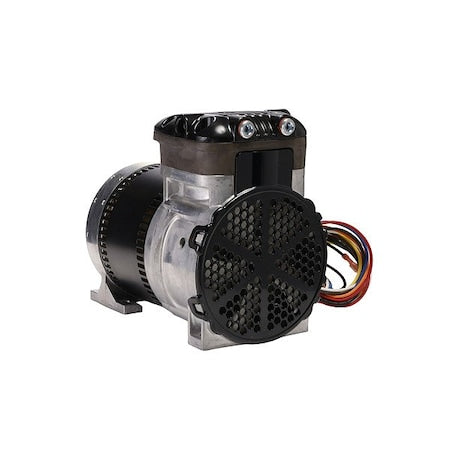

Gast 86R130-PS101-N270X - Piston Air Compressor,Rocking,0.25 hp
Gast 86R130-PS101-N270X - Piston Air Compressor,Rocking,0.25 hp
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 86R130-PS101-N270X is an oil-free piston air compressor with a rocking-piston design. It operates on 100/120V AC, 200/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/4 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.17 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 26.2 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 1.0 A, 1.5 A, 1.8 A, 3.1 A, and a measured sound level of 45.9 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.71 x 5.08 x 7.88 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
