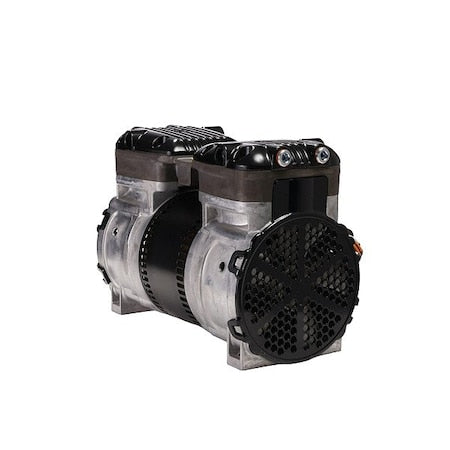

Gast 86R635-101-N470X - Rocking Piston Compressor Vacuum Pump
Gast 86R635-101-N470X - Rocking Piston Compressor Vacuum Pump
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast 86R635-101-N470X is an oil-free rocking piston compressor vacuum pump. It operates on 110/120 to 220/240V AC, 115/120 to 230/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 2.4 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 26.8 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 4.3/2.2 A, 4.6/2.4 A, and a measured sound level of 65 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and reed valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.53 x 5.08 x 7.08 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
