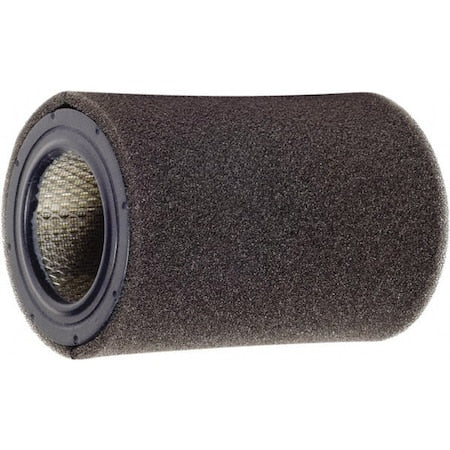

Gast AJ126G - Inlet Vacuum Filter, Heavy Duty, 2 1/2 in MPT Male Inlet, 10 Micron, Screw On

The GAST - AJ126G is an inlet vacuum filter designed for use in pneumatic conveying systems. It functions to remove dust, particulates, and liquid carryover from incoming air and reduces contaminants in the air entering the system. This pressure-rated intake filter has a disposable paper filter element with a filtration efficiency of 99%, rated to capture particles as small as 10 micron. It is compatible with Gast brand equipment, specifically matching the R7100A-3 part number and the R7 series.

Key Features:

• - Application: Pneumatic conveying systems.
• - Filter element material: Paper.
• - Filter rating: 10 micron for particle capture.
• - Filtration efficiency: 99%.
• - Housing material: Steel for structural protection.
• - Inlet size: 2 1/2 inches.
• - Inlet type and gender: MPT (male pipe thread).
• - Connection style: Screw on.
• - Maximum air flow: 400 cubic feet per minute (cfm).
• - Number of air inlets: 1.
• - Dimensions: Outside diameter of 10 inches and overall height of 13 1/16 inches.
• - Disposable: Yes, designed for single-use replacement.
