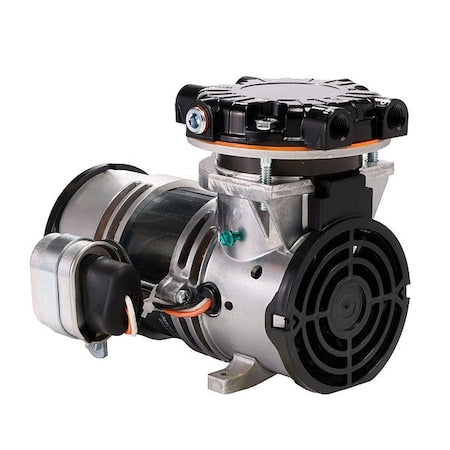

Gast LOA-101-JR - Piston Air Compressor,Size 1/4",2000 RPM
Gast LOA-101-JR - Piston Air Compressor,Size 1/4",2000 RPM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Gast LOA-101-JR is an oil-free, single-cylinder piston air compressor with a reciprocating design. It runs on 11 to 15V DC power at a rated 0.1 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.1 CFM at 100 psi up to 0.66 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 27.5 in Hg. It has a maximum speed of 2,000 RPM, a full-load current of 9 A, and a measured sound level of 70 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, a brushed DC motor, and reed valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.13 x 4.28 x 5.97 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 2,000 hr.
