Goulds Water Technology 5BF1L9G0 - Goulds 5 BF1 L9 G0, Centrifugal Pump,Series 3656,10 HP,170 ft. Max. Head
Goulds Water Technology 5BF1L9G0 - Goulds 5 BF1 L9 G0, Centrifugal Pump,Series 3656,10 HP,170 ft. Max. Head
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

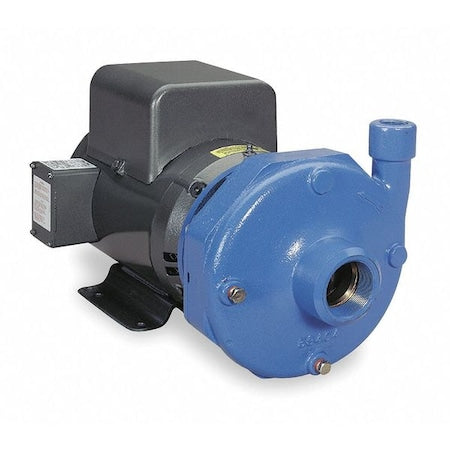

This item is a straight centrifugal high head pump with a horizontal mounting orientation and a cast iron housing. It is powered by a 10 hp, three-phase electric motor operating on 208–230/460V AC and uses a closed bronze impeller with a mechanical seal. The pump is manually primed and configured with NPT inlet and discharge connections, supporting water transfer within specified flow, head, pressure, and temperature limits.
Key Features:
- Pump Type: Straight centrifugal high head pump with horizontal mounting.
- Motor Specifications: 10 hp, three-phase motor operating at 3,500 RPM on 208–230/460V AC, 60 Hz.
- Flow and Head Performance: Maximum flow rate up to 210 gpm with a maximum head of 170 ft.
- Pressure Rating: Maximum operating and shutoff pressure specified at 175 psi.
- Temperature Rating: Maximum liquid temperature specified up to 212°F.
- Construction Materials: Cast iron housing with bronze impeller and stainless steel shaft.
- Connections: 2 in NPT inlet and 1-1/2 in NPT discharge connections.
- Solids Handling: Maximum solid diameter specified at 5/16 in.
- Duty Cycle: Continuous-duty operation.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
