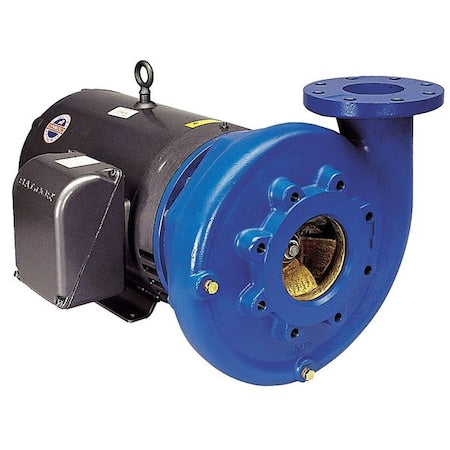

Goulds Water Technology 6BF1MBB0 - 3656 Centrifugal Pump,15 HP,160 ft. Max. Head

The Goulds 6BF1MBB0 is a 15 HP, close-coupled, straight centrifugal high-head pump from the 3656 Series. It is constructed with a cast iron housing and a closed bronze impeller for continuous-duty water applications. The unit features a back pull-out design to facilitate internal component access without disturbing piping connections.

Hydraulic Performance:

• - This pump is engineered for high-volume liquid transfer with a maximum flow rate of 580 gpm and a maximum head of 160 feet.
• - Best Efficiency Point: Operates at peak efficiency at 400 gpm @ 125 feet of head.
• - Best Efficiency Range: Maintains high efficiency between 225 to 510 gpm within a head range of 150 to 90 feet.

  Variable Flow Rates:

  • - 60 ft Head: 570 gpm
  • - 100 ft Head: 490 gpm
  • - 140 ft Head: 320 gpm
  • - 160 ft Head: 150 gpm
  • - Pressure Limits: Maximum case pressure is 175 psi

    Mechanical Construction:

    • - Materials: Features a cast iron volute, bronze impeller, and stainless steel shaft.
    • - Seal System: Utilizes a mechanical Type 21 seal
    • - Connections: Equipped with a 4-inch flanged intake and a 3-inch flanged discharge; the discharge can be rotated in 90-degree increments.
    • - Solids Handling: Spherical solids up to 0.5 inches in diameter.

      Electrical and Motor Specifications:

      • - Motor: 15 HP, 3,500 RPM, 60 Hz motor with a 215JM frame designation.
      • - Voltage: Configured for three-phase systems at 208-230/460V AC.
      • - Enclosure: Open Dripproof (ODP) motor enclosure.
