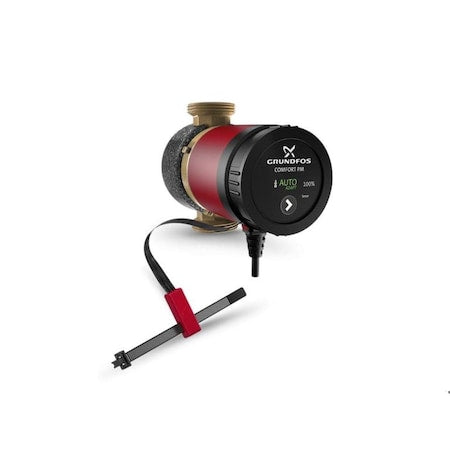

Grundfos 98420224 - Comfort UP10-16 PM A BU/LC - Circulator Pump with 6 ft. Cord

The high-efficiency Grundfos Comfort PM range is a product for domestic hotwater re-circulation with lead free drinking water suitable pump housing for single- and 2-family houses powered by a high efficiency single-phase, 12-pole, permanent-magnet motor. The AUTOADAPT function has been developed for domestic hot-water systems with hot-water tanks as primary heating source. Features and benefits: 1 Unique AUTOADAPT feature saving up to 48% heat energy and 96% motor energy, 2 Flushing function, 3 Automatic legionella eliminating operation if supported from the system, 4 Automatic weekend and vacation detection, 5 Temperature control, 6 Continuous operation, 7 Quick and simple electrical installation due to the highly reliable ALPHA plug, 8 Wearless operation due to liquid lubricated bearing, 9 No leakage risk due to a static seal, 10 Easy-to-clean and lime-insensitive spheric rotor, 11 Easy maintenance and cleaning through the easy-to-separate pump head fitting almost all competitor pump housing, 12 Corrosion resistant lead free brass pump housing and 13 No additional motor protection necessary due to integrated motor electronics.

• For domestic hot-water systems with hot-water tanks as primary heating source
• AUTOADAPT feature saving up to 48% heat energy and 96% motor energy
• Pipe connection: 1-1/4 in. NPSM
• Maximum operating pressure: 145.04 psi, pressure stage: 10, port-to-port length: 3-1/8 in.
• Maximum power input: 6-Watt, main frequency: 60 Hz, rated voltage: 1 x 115-Volt-230-Volt, pump housing: ecobrass
• Pump only; Union kit (not included) required for complete installation in most applications
• Compatible Union kits: 3/4 in. Female NPT Threaded Union Kit (Model# 529912, Internet# 314157111), 1/2 in. Female NPT Threaded Union Kit (Model# 519850, Internet# 303754507), 1/2 in. Female Copper Sweat Union Kit (Model# 529913, Internet# 314157114), or ¾ in. Female NPT Threaded Union Shut Off Kit (Model# 519852, Internet# 303754533)
