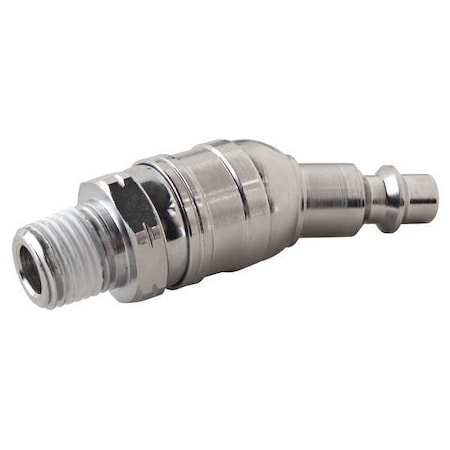

Guardair 14UMNMH05 - Swivel Coupling Plug,1/4"FNPT Inlet,2.6"L

The GUARDAIR - 14UMNMH05 is a swivel coupling plug designed as the male half of a quick-connect hose fitting. It is designed to create a sealed connection when installed with the specified matching coupler and fittings. The swivel body allows 360-degree rotation with a ball-joint swivel type and includes two pivot points with a 45-degree pivot angle, enabling independent hose/tool rotation to accommodate alignment when connected. This coupling plug features a 1/4" industrial interchange outlet connection and a 1/4" female NPT inlet connection, both sized at 1/4" to match compatible air hose and tool fittings.

Key Features:

• - Body size: 1/4"
• - Inlet connection: 1/4" Female NPT
• - Outlet connection: 1/4" Male Industrial Interchange
• - Material: Steel with nickel-plated finish
• - Includes pre-applied thread sealant on the inlet threads (for use with compatible NPT connections)
• - Overall length: 2.6 inches
• - Swivel rotation: 360° using a ball-joint swivel design
• - Two pivot points with a 45° pivot angle
