Guardian Equipment G5025 - Drench Hose, Wall Mount, Single Head, 8 ft Hose, Stay-Open Valve, 3/8 in NPT Inlet

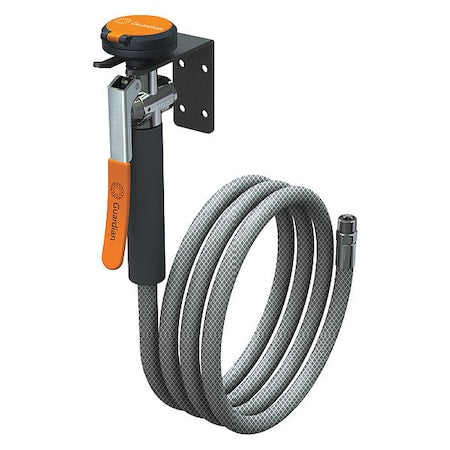

The GUARDIAN EQUIPMENT - G5025 is a wall-mounted, stand-alone drench hose intended for emergency eyewash and shower applications (requires installation with compatible emergency eyewash/shower system components). It features a single covered spray head with a diameter of 2 1/4 inches that delivers water at a maximum flow rate of 3.2 gallons per minute. The hose is 8 feet long and made of PVC, rated for internal pressure up to 275 psi. The valve is a stay-open type with forged brass construction, activated by a squeeze handle. The inlet connection is 3/8 inch NPT male thread, compatible with Guardian equipment. Meets ANSI Z358.1-2014 requirements (when installed and used in accordance with applicable guidelines and compatible system components). Included components are an identification sign, inspection tag, and wall bracket, with a flip top cover on the spray head for protection.

Key Features:

• - Stand-alone drench hose with wall mounting.
• - Single covered spray head, 2 1/4 in diameter.
• - Maximum flow rate of 3.2 gpm.
• - Hose length of 8 ft made from PVC material.
• - Valve type: stay-open, constructed from forged brass.
• - Squeeze handle activation mechanism.
• - Rated for internal pressure up to 275 psi.
• - Inlet connection: 3/8 in NPT male thread.
• - Includes identification sign, inspection tag, and wall bracket.
• - Meets ANSI Z358.1-2014 requirements; does not meet ADA accessibility requirements.
