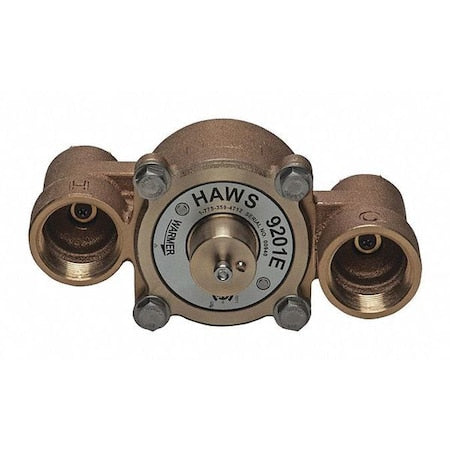

Haws 9201E - Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers

The HAWS - 9201E is an emergency mixing valve for use as a thermostatic mixing valve accessory in eyewash and shower systems. It regulates the mixing of hot and cold water to mix hot and cold water to achieve the specified outlet temperature range under installation and operating conditions. The valve opens in response to the specified hot and cold water flow, providing rated maximum flow rate: 31 gpm. Brass body with yellow finish. Intended for use in emergency eyewash and shower systems.

Key Features:

• - Thermostatic mixing valve accessory for temperature mixing.
• - Opens in response to the specified hot and cold water flow.
• - Rated maximum flow rate: 31 gpm.
• - Dimensions: 8 in length, 7 5/8 in depth, 5 3/8 in height, and 3 1/2 in width.
• - Inlet and outlet pipe size: 1 1/4 in female NPT connections.
• - Maximum inlet pressure: 125 psi.
• - Rated for inlet temperatures up to 180 °F with outlet temperature range specified as 60 °F to 90 °F.
• - Includes valve features such as a cold water bypass and a shuttle design in the mixing chamber.
• - Constructed to resist deposit formation (as supported by the product’s material/feature description).
• - Listed/certified to ANSI Z358.1, ASSE 1071, CSA B125.3.
