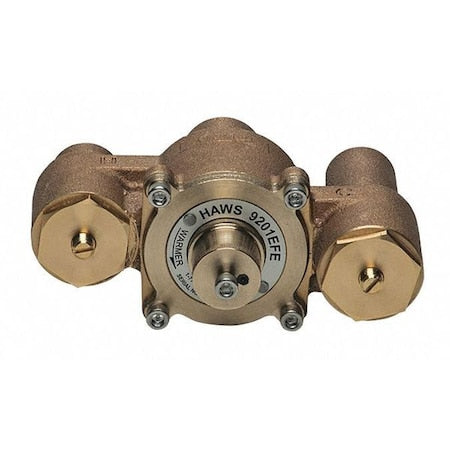

Haws 9201EFE - Emergency Mixing Valve, Brass, Yellow, For Use With, Single Eyewash

The HAWS - 9201EFE is an emergency mixing valve designed as a thermostatic mixing valve accessory for single eyewash units. Mixes hot and cold water inputs for temperature mixing and provides flow-activated operation. The valve is constructed from brass and is intended for use with Haws-compatible eyewash equipment, fitting multiple manufacturer part numbers. Rated flow range of 1 to 12 gpm and rated water outlet temperature range of 60 to 90°F (for use with emergency eyewash applications per applicable standards).

Key Features:

• - Activation Type: Flow-Activated Mixing of Hot and Cold Water
• - Material: Brass
• - Color: Yellow
• - Dimensions: 6 in length x 2 5/8 in width x 5 1/4 in height x 6 1/8 in depth
• - Inlet Pipe Size and Thread: 1/2 in NPT female
• - Outlet Pipe Size and Thread: 3/4 in NPT female
• - Maximum Flow Rate: 12 gpm
• - Flow Range: 1 to 12 gpm
• - Maximum Inlet Pressure: 125 psi
• - Maximum Inlet Temperature: 180 Degrees F
• - Water Output Temperature Range: 60 to 90 Degrees F
• - Features include mixing chamber, shuttle design, and cold water bypass valve feature
• - Compatible with the listed Haws eyewash model numbers and specified replacement/part numbers from other manufacturers
