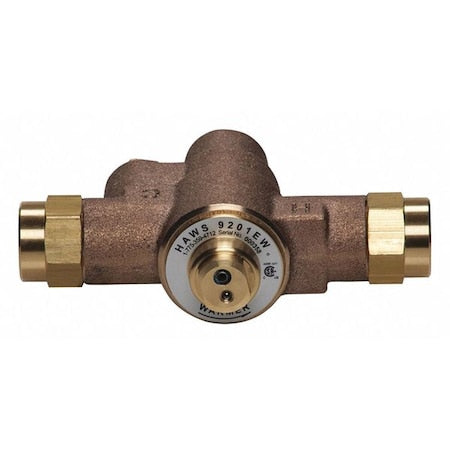

Haws 9201EW - Emergency Mixing Valve, Brass, Yellow, For Use With, Single Eyewash

The HAWS - 9201EW is an emergency mixing valve for installation with single eyewash stations. It features a thermostatic mixing valve that controls outlet water temperature within the specified range (60°F to 90°F) with a rating to activate at 85°F. The valve includes a cold water bypass and a mixing chamber with a shuttle design intended to control outlet flow and temperature within the specified ratings and includes features intended to reduce/minimize deposit accumulation. Constructed from brass, the valve is compatible with eyewash systems that use 1/2 in NPT female inlet/outlet connections and connects via 1/2 inch NPT female inlet and outlet piping.

Key Features:

• - Thermostatic mixing valve accessory type
• - Brass material construction
• - Yellow external color
• - Rated flow range: 1 to 10 gpm; maximum flow rate: 10 gpm
• - Rated maximum inlet pressure: 125 psi and rated maximum inlet temperature: 180°F
• - Rated outlet temperature: 60°F to 90°F, rated to activate at 85°F
• - Cold water bypass valve feature
• - Compact dimensions: 5 in length, 5 in depth, 3 1/2 in height, and 1 5/8 in width
• - Inlet and outlet pipe: 1/2 in NPT, female thread type
• - Features include deposit resistance, mixing chamber, and shuttle design
• - Is certified/claimed to meet ANSI Z358.1, ASSE 1071, and CSA B125.3 (per manufacturer documentation)
