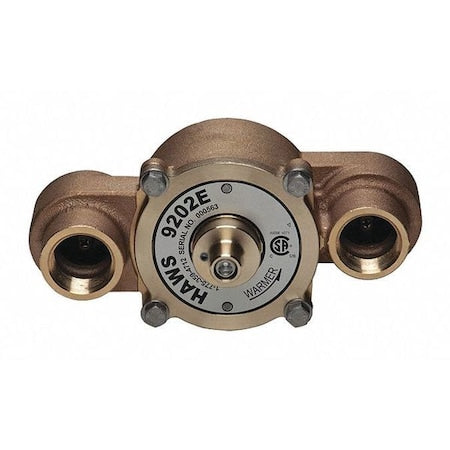

Haws 9202E - Emergency Mixing Valve, Brass, Yellow, For Use With, Eyewashes, Showers

The HAWS - 9202E is an emergency mixing valve designed for use with eyewash and shower units. is used to control mixing of hot and cold water to achieve a specified water output temperature range. is constructed of brass and is intended for use with eyewash and shower units manufactured by Haws, as applicable to the listed standards and dimensions. maintains water output temperature within the specified range of 60 to 95 °F under the stated operating conditions.

Key Features:

• - Thermostatic mixing valve accessory type for temperature control.
• - Operates when hot and cold water flows are supplied through the inlet connections.
• - Color: Yellow for visibility.
• - Material: Brass construction.
• - Intended for use with eyewash and shower units manufactured by Haws, as applicable to the listed standards and dimensions.
• - Dimensions: 10 in length x 4 3/4 in width x 4 7/8 in height x 10 1/8 in depth.
• - Inlet and outlet pipe size: 1 1/4 in with female NPT threads.
• - Rated flow range: 1 to 78 gpm (295 L); maximum flow rate: 78 gpm.
• - Maximum rated inlet pressure: 125 psi.
• - Maximum rated inlet water temperature: 180 °F.
• - Water output temperature range: 60 to 95 °F (when operated within the specified temperature and pressure limits).
• - Valve features a cold water bypass and shuttle design within the mixing chamber.
• - Includes deposit-resistant features (as specified by the manufacturer).
• - Is listed/claimed to comply with applicable standards including ANSI Z358.1, ASSE 1071, and CSA B125.3 (CSA certification as applicable).
