Hoffman 161054 - 100 HBFD-1520 15 GPM 1/3 HP 83 Gallon Boiler Feed, 161054
Hoffman 161054 - 100 HBFD-1520 15 GPM 1/3 HP 83 Gallon Boiler Feed, 161054
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

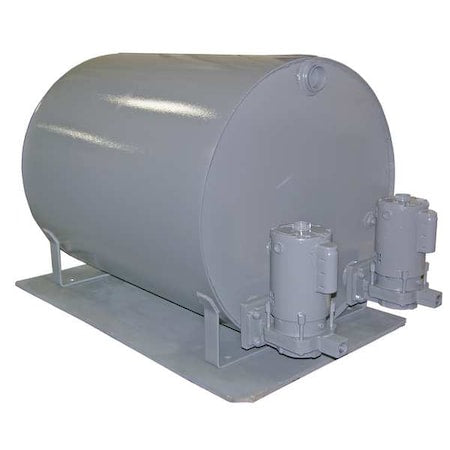

This item is a duplex boiler feed pump system with a horizontal steel receiver tank. It is configured with two vertically mounted pumps driven by single-phase electric motors and is intended to move water within boiler feed and condensate transfer systems. The unit operates within specified flow, pressure, temperature, and head limits and includes inlet, discharge, vent, overflow, and drain connections sized for integration into piping systems.
Key Features:
- Pump Configuration: Duplex boiler feed pump system with two pumps mounted vertically.
- Tank Capacity: 100 gal steel receiver tank with horizontal orientation.
- Motor and Power: Two 1/3 hp single-phase motors operating at up to 3,500 RPM on 115/230V AC, 60 Hz power.
- Flow Performance: Maximum flow rates specified up to 34 gpm depending on head, with a maximum head rating of approximately 52 ft.
- Pressure Rating: Discharge pressure specified at 20 psi.
- Temperature Rating: Maximum liquid temperature specified up to 200°F.
- Construction: Cast iron pump housings with bronze impellers and stainless steel threaded shafts.
- Connections: NPT inlet, discharge, vent, overflow, and drain ports sized up to 3 in.
- Included Components: Supplied with gauge glass assembly and make-up valve assembly.
