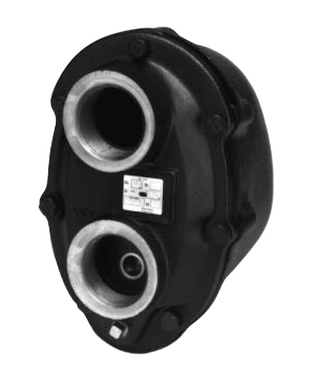

Hoffman 401890 - Model FT075C-8 Float and Thermostatic Steam Trap, 2"

Reliable condensate management is essential for maintaining steam system efficiency and preventing water hammer, a task expertly handled by the Hoffman 401890 FT075C-8. This robust 2-inch float and thermostatic steam trap is engineered to provide continuous drainage of condensate while simultaneously venting air and non-condensable gases from your steam piping and equipment.

Operating through a precision-balanced float mechanism, the trap responds instantly to changes in condensate levels. As condensate enters the trap, the stainless steel float rises, opening the valve seat to discharge the water. The integrated thermostatic element ensures rapid air discharge upon startup, preventing air binding and ensuring your steam system achieves operating temperature without delay.

Key System Performance Baselines:

• Continuous Drainage: Maintains optimal heat transfer by ensuring condensate does not back up into the heat exchanger.
• Air Handling: Features a built-in thermostatic bellows that efficiently vents non-condensable gases.
• Operational Versatility: Designed for heavy-duty steam service where consistent thermal performance is required.
• High Capacity: Engineered to handle substantial condensate loads common in industrial and commercial steam heating applications.

⚠️ Application Profile: Ideal for steam unit heaters, air handling coils, large heat exchangers, and industrial steam headers where reliable, automatic condensate removal is critical for system longevity.
