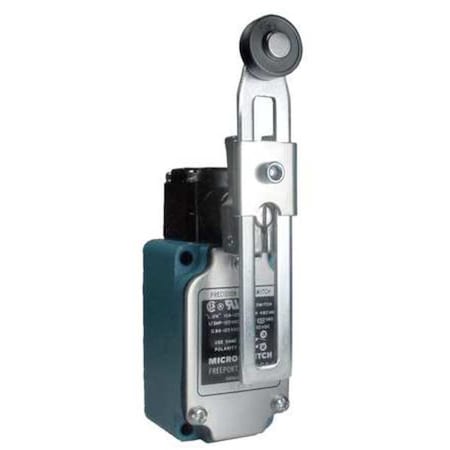

Honeywell 1LS58 - Limit Switch - Rotary Roller Lever, Die Cast Zinc, 10 A, NEMA Rated
Honeywell 1LS58 - Limit Switch - Rotary Roller Lever, Die Cast Zinc, 10 A, NEMA Rated
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Honeywell’s MICRO SWITCH Compact LS Limit Switch Series is suitable for installation in environments with limited space, as specified. This limit switch features a non plug-in, die-cast zinc body with a side rotary roller lever actuator and includes 1 normally closed (NC) and 1 normally open (NO) contact configuration. The unit incorporates a spring return mechanism and adjustable operator configuration.
Key features:
- - Contact rating: 10A at 480V AC
- - Actuator style: Rotary, roller lever; actuator length from 1.20" to 3.50"
- - Body construction: Die cast zinc; miniature style
- - Electrical connection: Screw terminals with threaded entry (1/2 in NPT)
- - Mounting: Surface mount with four mounting holes (0.19 in diameter), rectangular pattern
- - Operating temperature range: -20°F to 160°F (-29°C to 71°C)
- - Mechanical travel parameters: Pretravel—5°, differential travel—4°, overtravel—30°
- - Roller dimensions/material: Diameter—0.75", width—0.25", nylon material
- - Enclosure ratings: NEMA types 1, 3, 4, 6, and 13
- - Standards compliance: CSA, UL
