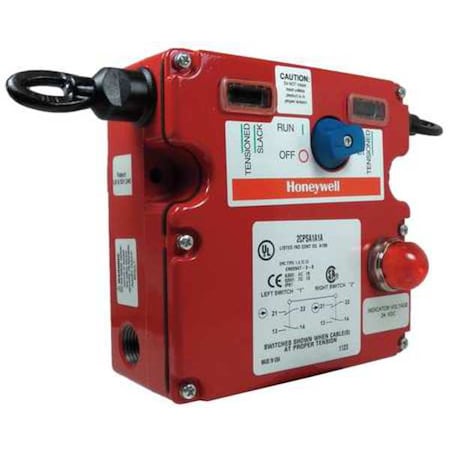

Honeywell's 2CPS Series Emergency Cable Pull Switch is a double-ended, maintained-action switch rated for operation with cable spans up to 500 ft. It includes a latching mechanism that changes switch state when the actuating cable is pulled, slackened, or broken. The unit features a zinc die cast case and includes a rotary knob reset mechanism. Switch contacts utilize snap-action operation and are manually resettable. An integrated 24V DC LED cluster serves as an indicator.

Key features include:

  • - Contact configuration: 2NO/2NC silver alloy contacts
  • - Maximum cable span: 500 ft; dual cable switching ability
  • - AC contact rating: 0.05 A @ 250 V; DC contact rating: 2.5 A @ 24 V; thermal current/amperage: 10 A
  • - Operating force: 3 to 5 lb; pull force: up to 40 lb
  • - Case material: Zinc die cast with IP67 and NEMA ratings (1,12,13,4)
  • - Mounting style: Double end; wiring entry size: 1/2 in NPT
  • - Indicator type: Integrated LED cluster (24V DC)
  • - Dimensions (L x W x D): 12.75 in x 12.75 in x 3.66 in
  • - Operating temperature range from -40°F to +176°F
  • - Standards met: CE, CSA, UL Listed
🏢
