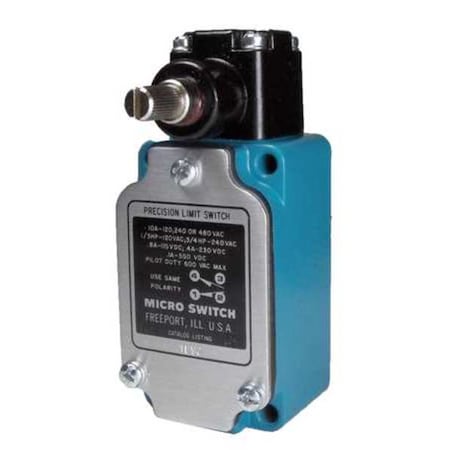

Honeywell 6LS2-L - Limit Switch - Rotary Head, Maintained Action, SPDT, 10 A, NEMA 1/3/4/6/13

Honeywell's MICRO SWITCH Compact LS Limit Switch Series offers a general purpose limit switch suitable for installation in a range of industrial environments, subject to compliance with applicable codes and standards. This model features a rotary head actuator without a lever, side actuator location, and maintained action. The compact, non plug-in body is constructed from zinc die cast material and is suitable for surface mounting with four mounting holes arranged in a rectangular pattern.

Key Features:

• - Contact Rating: 10A at 480V AC (SPDT, 1NC/1NO)
• - Actuator Style: Rotary head, no lever; side location
• - Body Dimensions: Height 2.7 in, Width 1.19 in, Depth 1.13 in
• - Mounting: Surface mount with (4) 0.19 in diameter holes; spacing of 2.31 x 1.19 in
• - Electrical Connection: Screw terminals; wiring entry via 1/2 in NPT
• - Movement & Travel: Maintained rotary action; differential travel of 4°, pretravel of 5°, overtravel of 30°
• - Operating Force/Torque: Maximum operating force of 3.0 in-lb
• - Temperature Range: -20°F to +160°F
• - Enclosure Ratings: NEMA Types 1, 3, 4, 6, and13
• - Standards Compliance: CSA and UL
