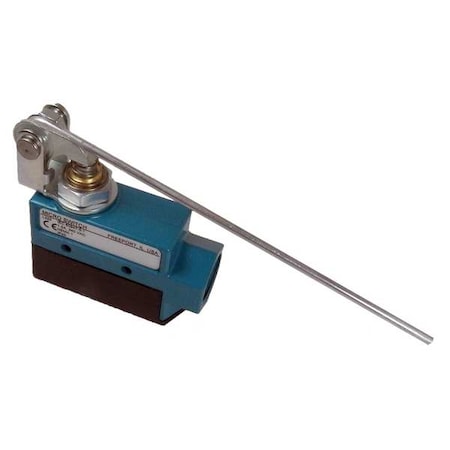

• Honeywell BZE6-2RQ62 - Limit Switch - Compact, SPDT, Lever/Plunger Actuator, 15 A 600 V, IP66
1 1

Honeywell BZE6-2RQ62 - Limit Switch - Compact, SPDT, Lever/Plunger Actuator, 15 A 600 V, IP66

Honeywell BZE6-2RQ62 - Limit Switch - Compact, SPDT, Lever/Plunger Actuator, 15 A 600 V, IP66

Brand: Honeywell SKU: BZE6-2RQ62
$158.04 USD
$158.04 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Honeywell Limit Switch is a general purpose, miniature limit switch suitable for installation in indoor and outdoor environments, subject to compliance with specified enclosure ratings. It features a rod lever actuator with both plunger and lever styles, mounted at the top of the zinc die cast body. The switch uses screw terminals for electrical connection and provides single pole double throw (SPDT) operation with 1 normally closed (NC) and 1 normally open (NO) contact configuration.

Key features:

  • - AC Contact Rating: 15A at 600V; DC Contact Rating: 2A at 250V
  • - Actuator Style: Lever, Plunger; Actuator Length: 6.0 in; Arm Material: Steel
  • - Body Dimensions: Height 1.75 in, Width/Depth 3.04 in x 1.0 in; Miniature style
  • - Mounting Style: Surface mount with two horizontal mounting holes (0.22 in diameter, spaced 1.00 in apart)
  • - Electrical Connection: Screw terminals; Wiring Entry: 1/2 in NPT
  • - Operating Force Range: Minimum 2 ozf to Maximum 5 ozf
  • - Travel Parameters: Differential travel of approximately 0.23 in, pretravel up to about 0.72 in, overtravel up to about .84 in
  • - Temperature Range: -25°F to +160°F
  • - Enclosure Ratings: IP66 and NEMA Type 1
  • - Standards Certifications: CSA, UL
🏢
