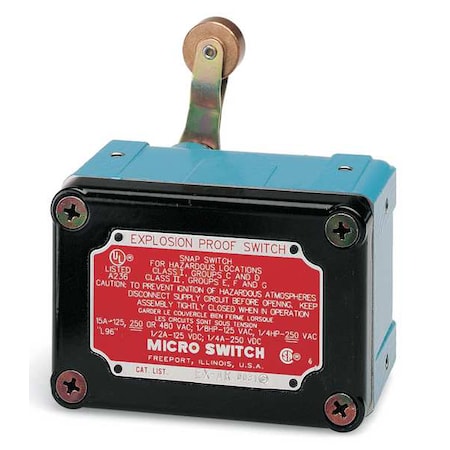

Honeywell EX-AR141 - Limit Switch - Explosion Proof, Rotary Roller Lever, SPDT, Aluminum Housing

MICRO SWITCH EX Series Explosion Proof Limit Switch from Honeywell features a miniature aluminum housing rated for operation in environments meeting the specified hazardous location classifications. This rotary, roller lever limit switch is equipped with a top-mounted actuator and features SPDT (1NC/1NO) contact configuration. The unit supports surface mounting with two 10-32 threaded holes spaced 2.06 inches apart, and utilizes screw terminals for electrical connection.

Key Features:

• - AC Contact Rating: 15A at 600V; DC Contact Rating: 0.25A at 250V
• - Actuator Style: Rotary, Roller Lever; Actuator Length: 1.5 in; Roller Diameter: 0.75 in (bronze)
• - Body Material/Style: Aluminum, Miniature; Dimensions (HxWxD): 2.56 x 2.78 x 2.02 in
• - Operating Temperature Range: -40°F to +160°F
• - Mounting Style: Surface mount with two horizontal mounting holes (10-32 thread)
• - Electrical Connection: Screw terminals; Wiring Entry Size: 1/2"-14 NPT
• - Certifications & Standards: ATEX, IEC Ex, CSA, UL; Hazardous Location Specification includes Class I Divisions 1 & 2 Groups B, C, D and Class II Divisions 1 & 2 Groups E, F, G
