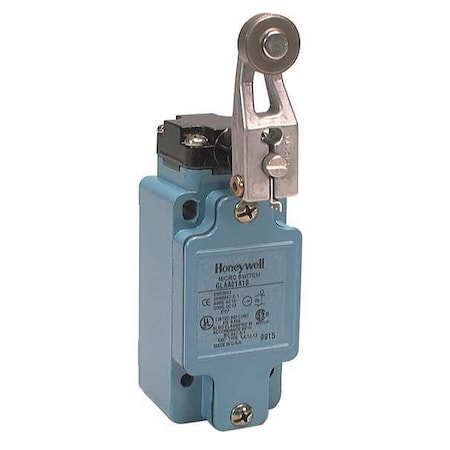

Honeywell GLAA01A1B - Limit Switch - Rotary Roller Lever, 10 A, IP67/NEMA 4, GLA Series

Honeywell's MICRO SWITCH GLA Series Limit Switch is a general purpose rotary limit switch manufactured in accordance with EN50041 standards. It features a modular construction with a side-mounted rotary roller lever actuator and a non plug-in, zinc die-cast housing rated for use in environments requiring enclosure sealing, as specified by IP67 and NEMA types 1,12,13,4. The switch offers 1 normally closed (NC) and 1 normally open (NO) contact configuration, supporting both AC and DC ratings.

Key features:

• - Contact rating: 10A at 600V AC; 10A at 250V DC
• - Actuator style: Rotary roller lever, steel arm; actuator length: 1.5 in; roller diameter: 0.75 in
• - Body dimensions: Height – 3.23 in, Width/Depth – 1.65 in
• - Mounting: Surface mount with four holes (0.21 in dia), rectangular pattern (2.36 x 1.18 in)
• - Electrical connection via screw terminals; wiring entry size: 1/2 in NPT
• - Operating temperature range: -13°F to +185°F
• - Movement capability: Clockwise/counterclockwise rotation; differential travel of 12°, pretravel of 26°, overtravel of 59°
• - Enclosure ratings: IP67, NEMA types 1,12,13,4
• - Standards met: CCC, IEC947-5-1, CE, CSA, EN60947-5-1, UL508
