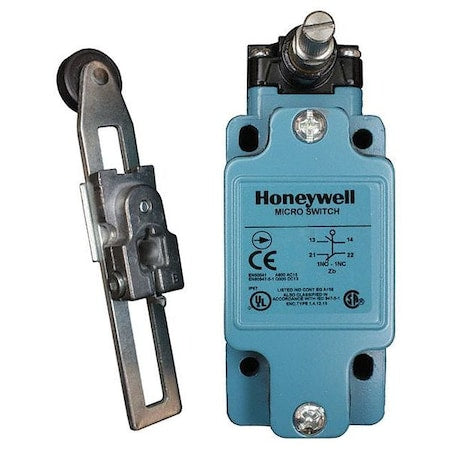

Honeywell GLAA20A2A - Limit Switch - GLA Series, Rotary Roller Lever, 2 NC/2 NO, IP67, NEMA 4

Honeywell's MICRO SWITCH GLA Series Limit Switch is a general purpose rotary limit switch rated for use in applications requiring compliance with EN50041 specifications. It features a modular design allows for multiple configurations based on application requirements. The unit has a die-cast zinc housing and side-mounted rotary roller lever actuator with spring return action.

Key features:

• - Contact configuration: 2NC/2NO (DPDT)
• - AC rating: 10A at 600V; DC rating: 10A at 250V
• - Actuator style: Side rotary roller lever, adjustable arm length from 1.50" to 3.60"
• - Body dimensions: Height 3.23", width/depth 1.65"
• - Operating temperature range: -13°F to 185°F
• - Mounting style: Surface mount with four-hole rectangular pattern (0.21" dia holes)
• - Electrical connection via screw terminals; wiring entry is threaded (1/2 in NPT)
• - Roller diameter: 0.75", nylon material
• - Movement direction: CW or CCW; operating force of 2.9 in-lb
• - Enclosure ratings: NEMA types 1, 4, 12, and 13; IP67 rated
• - Standards met include CCC, IEC947‑5‑1, CE, CSA, EN60947‑5‑1, UL508
