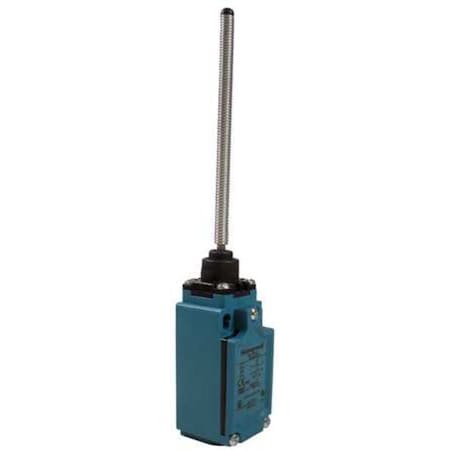

Honeywell GLDA01E7B - Limit Switch - GLD Series, Miniature, Wobble Stick Actuator, SPDT, IP66/IP67

Honeywell's MICRO SWITCH GLD/GLS miniature limit switch features a compact plastic housing suitable for installations with limited available space. This general purpose limit switch utilizes a 5-inch stainless steel wobble stick actuator located at the top of the unit, providing omnidirectional actuator travel within the specified mechanical limits. The device includes a single-pole double-throw (SPDT) contact form with one normally closed (NC) and one normally open (NO) contact, suitable for both AC and DC circuits.

Key Features:

• - Contact Ratings: 10A at 600V AC; 10A at 250V DC
• - Actuator: Wobble stick style, stainless steel, 5.0 in length, top-mounted
• - Body Dimensions: Miniature size; width 1.2 in, height 2.17 in, depth 1.18 in
• - Electrical Connection: Screw terminals
• - Mounting: Surface mount with four mounting holes (0.21 in diameter), rectangular pattern (2.36 x 1.18 in spacing)
• - Movement & Travel: Omnidirectional movement; differential travel of 10°, pretravel of up to 16°
• - Protection Ratings: IP66/IP67; NEMA types 1,12,13,4X enclosures
• - Operating Temperature Range: -40°F to +185°F
• - Standards Compliance: CCC, IEC947‑5‑1, CE, CSA, EN60947‑5‑1, UL508
